Plsasma Scrubber greenhouse gas (PFCs) plasma scrubber

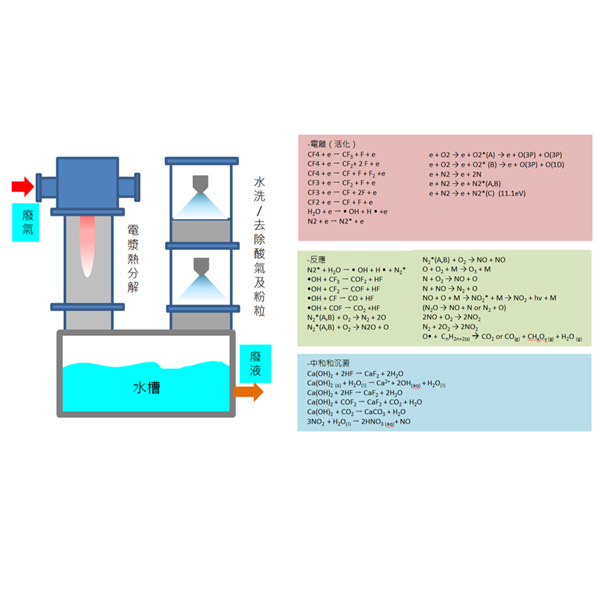

Through the destruction and decomposition of harmful waste gases generated during the plasma process, water-soluble chemicals are formed, which are then washed and dissolved into the water, and then the waste water is discharged.

※Customized design project specifications can also be carried out according to production conditions.
※All industries are welcome to inquire about solutions.

• (1) High efficiency and low power consumption
• (2) Automatic dosing machine can be connected externally (for wastewater pretreatment)
• (3) The equipment is small in size and can be easily integrated into the in-line production line.
• (4) Can handle tail gas emissions from equipment such as perfluorocarbons
• (5) Can be connected with front-end process equipment to further reduce energy usage

• Gas detection equipment:
• Ability to verify analytical results after gas treatment
• Provide customer sampling and analysis services

• [Excellent plasma treatment efficiency]
• Actual measurement results of CF4 removal rate:
• After treatment with CNT plasma washing equipment, CF4 DRE>95% was obtained through GC analysis.
• CF4 pass concentration: 4%
• After treatment with CNT plasma washing equipment, C2F6 DRE>98% was obtained through GC analysis.
• C2F6 pass concentration: 4%
